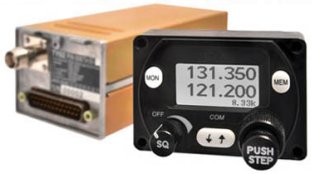

Trig TY91 VHF Transceiver w/8.33

£1,279.20 £1,066.00 (ex. VAT)

The Trig TY91 super compact and lightweight 8.33 transceiver

1 in stock

SKU: OE190 Categories: ,

Description

The Trig TY91 super compact and lightweight. The use of a control head and separate radio module provides more installation options, especially when space is at a premium.

The control head conveniently mounts into a standard 57mm round hole or even smaller compact mount. Fitting is straightforward, and once installed the depth of the radio control head is only 74mm. In practice this means that the Trig TY91 and TY92 control head can be located in an aircraft instrument panel where a conventional ‘single box’ radio will not fit.

Highly recommended for Microlight, Light sport, Ultra light, Glider and Balloon, this lower powered 6 watt model is ideal for the majority of GA users.

• Low Weight
• 11-33V operation
• Auxiliary Audio Input
• Minimal Panel Space
• Low Power Consumption
• 6 Watts Nominal Output
• 8.33 kHz channel spacing
• Simple Installation

The TY91 is the perfect comms partner to the TT21 and TT22 Mode S (1090 ES ADS-B Out transponders).

The TY91 is TSO approved for fitting to European and FAA registered aircraft.

Additional information

Weight 0.00000 kg
Reference

01079-00 TY91 Complete
