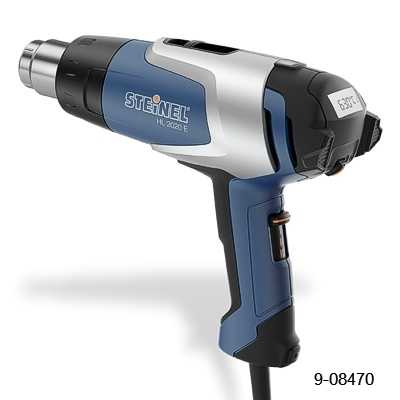

Steinel HL 2020 E heat gun for use with Oratex covering

Steinel HL 2020 E heat gun for use with Oratex covering

The HL 2020 E hot air tool is extremely robust, promising to last a good 20% longer than its predecessor. Professional extras: the residual heat indicator warns the user that the delivery nozzle is still hot and can cause burns even long after the tool has been unplugged. And the joystick permits intuitive operation and use. And talking of use: the HL 2020 E hot air professional is designed for all STEINEL nozzles and, delivering hot air at a temperature of up to 630 °C, the ideal tool for shaping, desoldering printed circuit boards, welding plastics, drying filler, shrinking on cable sleeves, soldering pipes and other jobs requiring high, accurately adjustable heat as well as a powerful blower. The current working temperature and airflow rate is indicated on the LCD display which is easy to read at any light level. The tool immediately responds to heat build-up by indicating a warning triangle on the display.

Benefits: LCD display, residual heat indicator for optimum protection, ergonomic operation by joystick, impressive 2200 watts of power, adjustable from 80 °C to 630 °C in 10 °C steps. Airflow rate adjustable in three stages (150 / 150-300 / 300-500 l/min.). With plastic case and 9 mm reduction nozzle. Optionally available fine-dust filter and HL Scan for measuring temperature at the workpiece. The mains power cord is very easy to replace by removing the cap on the handle.

Technical specifications electronically controlled hot air tool HL 2020 E Folding box

Dimensions (l x w x h) 253 x 85.5 x 200 mm
Voltage 220 – 230 V, 50/60 Hz
Min. frequency 50 Hz
Max. frequency 60 Hz
Power consumption 2200 W
Min. temperature range 80 °C
Max. temperature range 630 °C
Max. temperature range P00268v001
Temperature control Continuously variable
Temperature regulation Yes
Temperature setting in 10 °C steps by joystick
Min. airflow rate 150 l/min
Max. airflow rate 500 l/min
Airflow regulation 3-stage
Airflow rate Setting 1: 150 l / min.
Setting 2: 150 – 300 l / min.
Setting 3: 300 – 500 l / min.
Air volume 500 l/min
Motor Brush motor
Heating element Ceramic
Indicated on the tool LCD in 10° C steps
Protection class (without earth terminal) II
Thermostat Yes
Thermal cut-out Yes
Power cord length 2.20 m
Weight 0.88 kg
(electronically controlled) Yes
Special features Includes 9 mm reduction nozzle
Cased
