C42 Owners Service Bulletin 34 (TIN-05-2022)

C42 Owners Service Bulletin 34 (TIN-05-2022)

.

Some of you may b    e aware of OSB 34 (TIN-05-2022). For those of you who aren’t, please read and ensure you follow the mandatory notice.

.

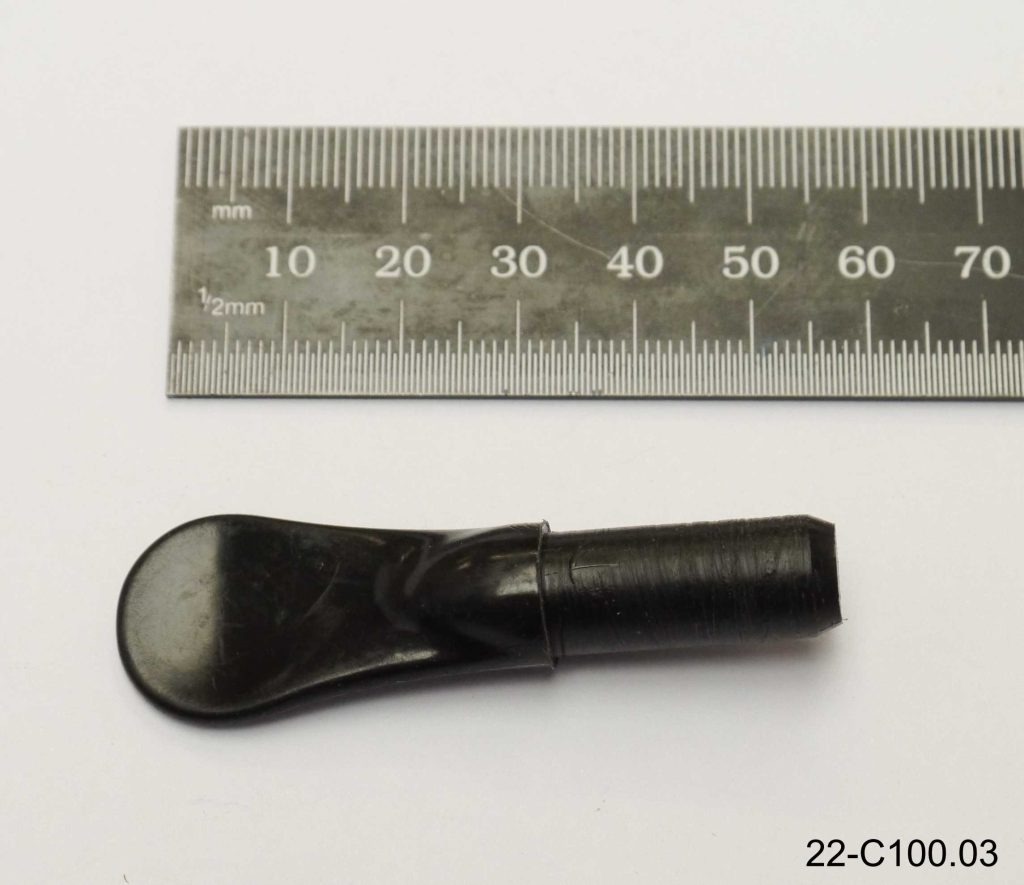

Please inspect your plastic batten tips on the lower wing battens in line with the C42 maintenance schedule. In some cases, these batten tips have broken off and/or fallen out, causing damage and compromising the structural integrity of the wing spar. We have also seen cases where the batten has been incorrectly installed (pushed in too far) which will have the same damaging effect on the spar.

.

It is highly unlikely that damage of this severity occurred between the 50hrs inspections scheduled for this area.

.

𝙋𝙚𝙧𝙛𝙤𝙧𝙢 𝙩𝙝𝙚 𝙛𝙤𝙡𝙡𝙤𝙬𝙞𝙣𝙜 𝙖𝙘𝙩𝙞𝙤𝙣𝙨 𝙬𝙞𝙩𝙝𝙞𝙣 𝙩𝙝𝙚𝙨𝙚 𝙩𝙞𝙢𝙚𝙨𝙘𝙖𝙡𝙚𝙨:

.𝙁𝙤𝙧 𝙖𝙞𝙧𝙘𝙧𝙖𝙛𝙩 𝙬𝙞𝙩𝙝 1000 𝙝𝙤𝙪𝙧𝙨 𝙤𝙧 𝙜𝙧𝙚𝙖𝙩𝙚𝙧, 𝙬𝙞𝙩𝙝𝙞𝙣 𝙩𝙝𝙚 𝙣𝙚𝙭𝙩 10 𝙝𝙤𝙪𝙧𝙨 𝙤𝙧 𝙤𝙣𝙚 (1) 𝙢𝙤𝙣𝙩𝙝 𝙬𝙝𝙞𝙘𝙝𝙚𝙫𝙚𝙧 𝙤𝙘𝙘𝙪𝙧𝙨 𝙨𝙤𝙤𝙣𝙚𝙨𝙩.

.

.𝙁𝙤𝙧 𝙖𝙞𝙧𝙘𝙧𝙖𝙛𝙩 𝙬𝙞𝙩𝙝 𝙡𝙚𝙨𝙨 𝙩𝙝𝙖𝙣 1000 𝙝𝙤𝙪𝙧𝙨, 𝙖𝙩 𝙩𝙝𝙚 50 𝙝𝙤𝙪𝙧 𝙞𝙣𝙨𝙥𝙚𝙘𝙩𝙞𝙤𝙣 𝙤𝙧 𝙖𝙣𝙣𝙪𝙖𝙡𝙡𝙮 𝙬𝙝𝙞𝙘𝙝𝙚𝙫𝙚𝙧 𝙤𝙘𝙘𝙪𝙧𝙨 𝙨𝙤𝙤𝙣𝙚𝙨𝙩.

.

If you require replacements, they are available from our website:

.

.

and the rivets required (1 required per batten tip):
